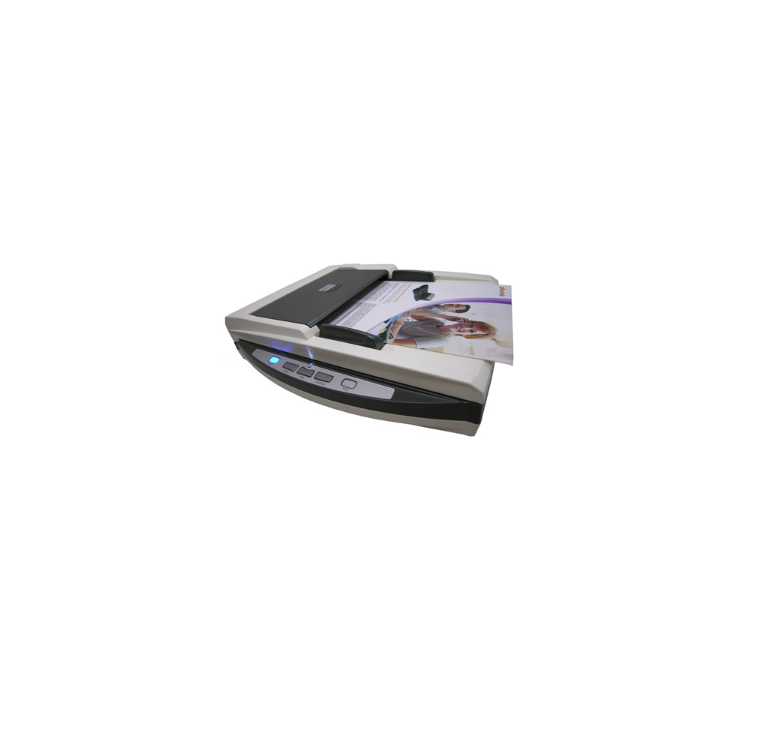

SmartOffice PL1530

Vous devez vous connecter ou créer un compte pour voir les prix.

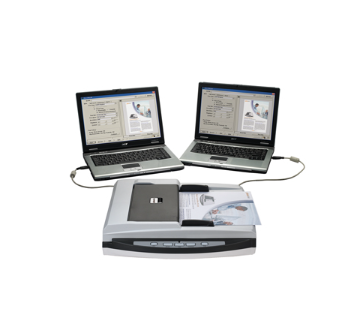

Conçu avec la fiabilité exigée par les utilisateurs professionnels, le SmartOffice PL1530 dispose de deux ports USB qui permettent de partager le scanner entre deux PC.

Image Sensor CIS x 2
Optical Resolution 600 dpi
Hardware Resolution Flatbed: 600 x 1200 dpi
ADF: 600 x 600 dpi
Scan Modes Color: Input 48-bit, Output 24-bit
Grayscale: Input 16-bit, Output 8-bit
Black & White: 1-bit
ADF Capacity 1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2").
2. 20 sheets (Business Cards).
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF ) 9 ppm/ 10 ipm (Color mode, 200 dpi, A4 Portrait)
15 ppm/ 30 ipm (Grayscale mode, 200 dpi, A4 Portrait)
15 ppm/ 30 ipm (B&W mode, 200 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L) Flatbed:
Max. 216 x 297 mm (8.5” x 11.69”)
Min. 12.7 x 12.7 mm (0.5” x 0.5”)
ADF:
Max. 216 x 356 mm (8.5” x 14”)
Min. 12.7 x 12.7 mm (0.5” x 0.5”)
Acceptable Paper Sizes (W x L) Flatbed:
Max. 216 x 297 mm (8.5” x 11.69”)
Min. 12.7 x 12.7 mm (0.5” x 0.5”)
ADF:
Max. 220 x 356 mm (8.66” x 14”)
Min. 90 x 50.8 mm (3.55” x 2”)
Acceptable Paper Weight (Thickness) 50 to 120 g/㎡ (14 to 32 Lbs)
Daily Duty Scan ( Sheets ) 1,000
Roller Lifetime (Scans) 100,000
Pad Lifetime (Scans) 25,000
Action Button PC1、Scan、OCR、Custom、PC2
Power Supply 24 Vdc/ 0.75 A
Interface USB 2.0
Net Weight 4 Kgs (8.33 Lbs)
Dimensions (W x D x H) 418 x 326 x 101 mm (16.45" x 12.83" x 4")
Protocol TWAIN Compliant
Operating System Windows XP / Vista / 7 / 8 / 10

Linux compatibility is only available for system integrators. Please contact sales@plustek.com for more info.
Hardware Requirements 2.0 GHz CPU processor or higher[1]
[1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher
4 GB RAM minimum (Recommended: 8 GB or more)
6 GB of hard-disk space for program installation
Two Availible USB Ports
Display dimensions of 1024x768 or greater
PLUSTEK
PL1530
